這款高精度貼片晶振TSX-3225應用非常廣泛，而且可以說是性價比比較高的，業內人都知道，雖然已經開發出2520甚至小尺寸2016無源晶振，但是尺寸更小，也代表著制造工藝越發繁瑣和成本的增高，現在很多便攜式產品需要尺寸小，高性能，壽命長，價格適中的貼片晶振，3225已經相對而言屬于小尺寸晶振，可以滿足便攜式和可穿戴設備要求，價格也比2520，2016要低，厲害的是，3225無源晶振的成本比5032的也低，所以說TSX-3225是性價比高的選擇。
TSX-3225無源晶振X1E000021011516適用于可穿戴設備,X1E000021011916,3225mm晶振

愛普生晶振	尺寸	型號	頻率	負載	精度
X1E000021001916	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	9pF	+/-10ppm
X1E000021004716	3.2x2.5x0.6mm	TSX-3225	20.000000MHz	9pF	+/-10ppm
X1E000021004816	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	9pF	+/-10ppm
X1E000021011116	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	8pF	+/-10ppm
X1E000021011216	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	9pF	+/-10ppm
X1E000021011316	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	10pF	+/-10ppm
X1E000021011416	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	12pF	+/-10ppm
X1E000021011516	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	16pF	+/-10ppm
X1E000021011616	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	8pF	+/-10ppm
X1E000021011716	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	9pF	+/-10ppm
X1E000021011816	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	10pF	+/-10ppm
X1E000021011916	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	12pF	+/-10ppm
X1E000021012016	3.2x2.5x0.6mm	TSX-3225	16.000000MHz	16pF	+/-10ppm
X1E000021012116	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	8pF	+/-10ppm
X1E000021012216	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	9pF	+/-10ppm
X1E000021012316	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	10pF	+/-10ppm
X1E000021012416	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	12pF	+/-10ppm
X1E000021012516	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	16pF	+/-10ppm
X1E000021012616	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	8pF	+/-10ppm
X1E000021012716	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	9pF	+/-10ppm
X1E000021012816	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	10pF	+/-10ppm
X1E000021012916	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	12pF	+/-10ppm
X1E000021013016	3.2x2.5x0.6mm	TSX-3225	24.000000MHz	16pF	+/-10ppm
X1E000021013116	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	8pF	+/-10ppm
X1E000021013216	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	9pF	+/-10ppm
X1E000021013316	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	10pF	+/-10ppm
X1E000021013416	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	12pF	+/-10ppm
X1E000021013516	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	16pF	+/-10ppm
X1E000021013616	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	8pF	+/-10ppm
X1E000021013716	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	9pF	+/-10ppm
X1E000021013816	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	10pF	+/-10ppm

X1E000021014016	3.2x2.5x0.6mm	TSX-3225	25.000000MHz	16pF	+/-10ppm
X1E000021014116	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	8pF	+/-10ppm
X1E000021014216	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	9pF	+/-10ppm
X1E000021014316	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	10pF	+/-10ppm
X1E000021014416	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	12pF	+/-10ppm
X1E000021014516	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	16pF	+/-10ppm
X1E000021014616	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	8pF	+/-10ppm
X1E000021014716	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	9pF	+/-10ppm
X1E000021014816	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	10pF	+/-10ppm
X1E000021014916	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	12pF	+/-10ppm
X1E000021015016	3.2x2.5x0.6mm	TSX-3225	26.000000MHz	16pF	+/-10ppm
X1E000021015116	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	8pF	+/-10ppm
X1E000021015216	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	9pF	+/-10ppm
X1E000021015316	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	10pF	+/-10ppm
X1E000021015416	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	12pF	+/-10ppm
X1E000021015516	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	16pF	+/-10ppm
X1E000021015616	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	8pF	+/-10ppm
X1E000021015716	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	9pF	+/-10ppm
X1E000021015816	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	10pF	+/-10ppm
X1E000021015916	3.2x2.5x0.6mm	TSX-3225	27.000000MHz	12pF	+/-10ppm
X1E000021016116	3.2x2.5x0.6mm	TSX-3225	32.000000MHz	8pF	+/-10ppm
X1E000021016216	3.2x2.5x0.6mm	TSX-3225	32.000000MHz	9pF	+/-10ppm
X1E000021016316	3.2x2.5x0.6mm	TSX-3225	32.000000MHz	10pF	+/-10ppm
X1E000021016416	3.2x2.5x0.6mm	TSX-3225	32.000000MHz	12pF	+/-10ppm
X1E000021016516	3.2x2.5x0.6mm	TSX-3225	32.000000MHz	16pF	+/-10ppm
X1E000021016616	3.2x2.5x0.6mm	TSX-3225	32.000000MHz	8pF	+/-10ppm
X1E000021016716	3.2x2.5x0.6mm	TSX-3225	32.000000MHz	9pF	+/-10ppm

TSX-3225無源晶振X1E000021011516適用于可穿戴設備,X1E000021011916,3225mm晶振

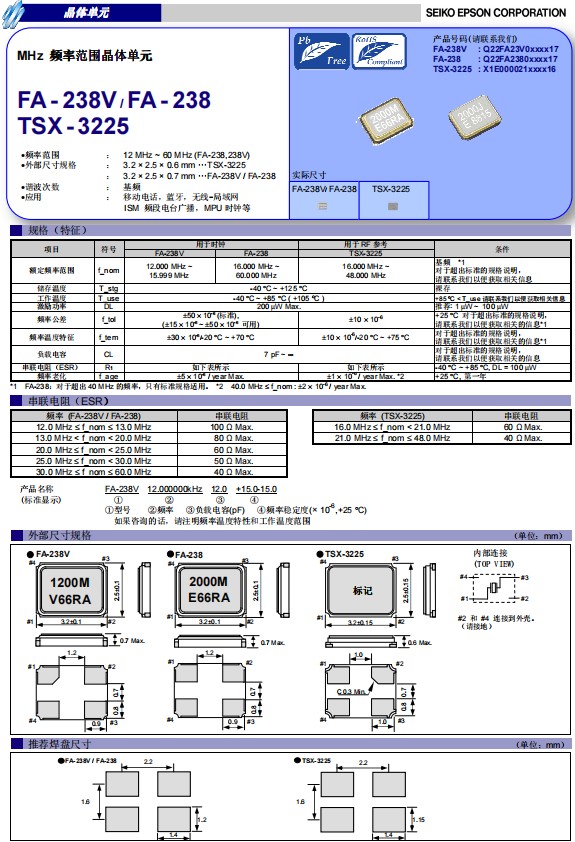

日本愛普生晶振TSX-3225是一款小體積3.2x2.5mm無源晶振，石英晶體諧振器，四腳貼片晶振，頻率范圍16MHz至48MHz，工作溫度范圍-40℃至+85℃（+105℃），具有小體積輕薄型，耐熱及耐環境特性，穩定性極好，非常適用于小型便捷式設備，可穿戴設備，汽車電子，消費電子，無線藍牙，智能手機，平板電腦，數碼電子等。
